XE1205
/RXParam_Disable_bitsync
= ‘0’
RXParam_Pattern
= ‘1’
Q_lim
FSK
I_lim DEMODULATOR
BIT
SYNCHRONIZER
data
dclk
PATTERN
MATCHING
Shift reg
8
pattern
write_byte
IRQ_0
/fifoempty
RXParam_RSSI
RSSI
RSSI_irq
FIFO
Fifofull
IRQ_1
8
MOSI
SPI
DATA
regspidata
MISO
SCK
NSS_DATA
.

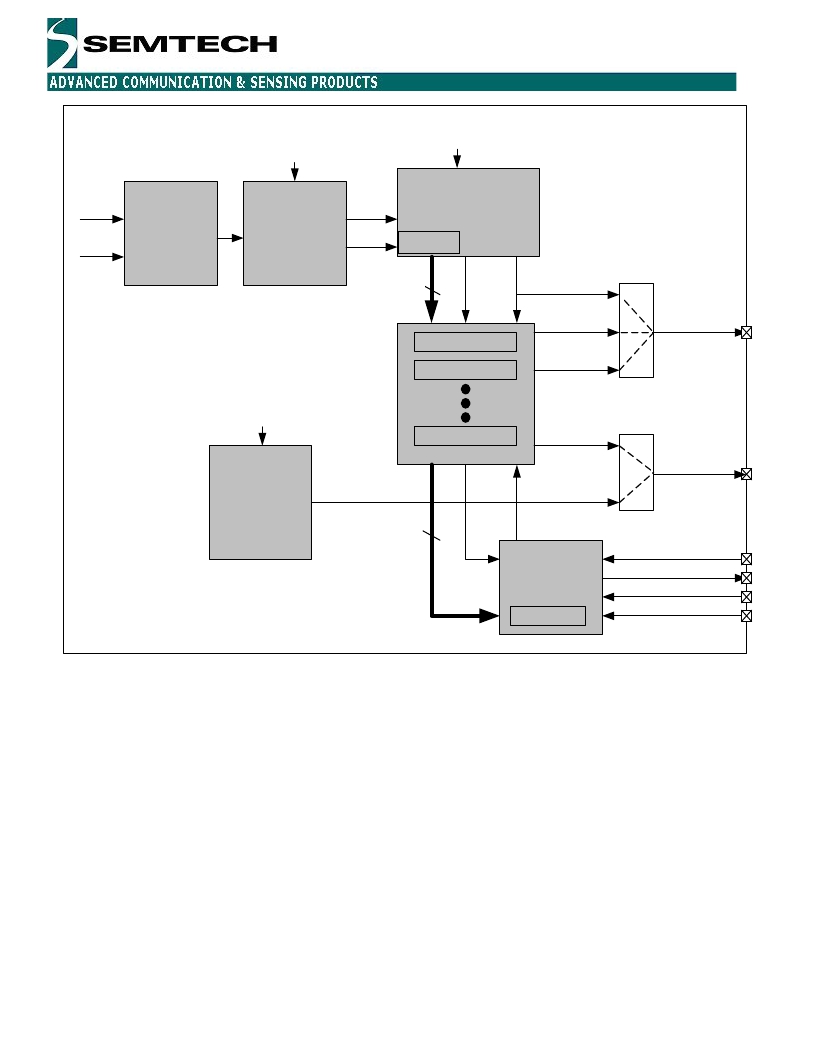

Figure 8: Receiver chain in buffered mode
If IRQParam_Start_fill is high, FIFO filling is initiated by asserting IRQParam_Start_detect.
Once sixteen bytes have been written to the FIFO the IRQParam_Fifofull signal is asserted. Data should then normally
be read out. If no action is taken the FIFO will overflow and subsequent data will be lost. If this occurs the
IRQParam_Fifooverrun bit is set. The IRQParam_Fifofull signal can be mapped to pin IRQ_1 as an interrupt for a
microcontroller if IRQParam_RX_irq_1 is set to “01” (please refer to section 5.2.2).
To recover from an overflow situation a ‘1’ must be written to IRQParam_Fifooverrun; this clears the contents of the
FIFO, resets all FIFO status flags and re-initiates pattern matching (only when an overrun has occurred).
In order to clear the FIFO in reception, a “1” should be written in IRQParam_start_detect (bit 6 add 6).
Pattern matching can also be re-initiated during a FIFO filling sequence by writing a ‘1’ to IRQParam_Start_detect.
? Semtech 2008
15
www.semtech.com
